The Posters
Seven sheets · 11×17 · above the simulators
Two to get people in the door, four that are one trail map, and one that explains the machine. Print-ready PDFs; nothing here needs a designer.
The Pilot Path · hang these four in a row
the trail runs off the right edge of each sheet and onto the next
All seven
Ad · 1 of 2
Fly FPV. Anytime.
The sim lab pitch: five sims, open every school day, no club needed. QR to this site.
PDF
Ad · 2 of 2

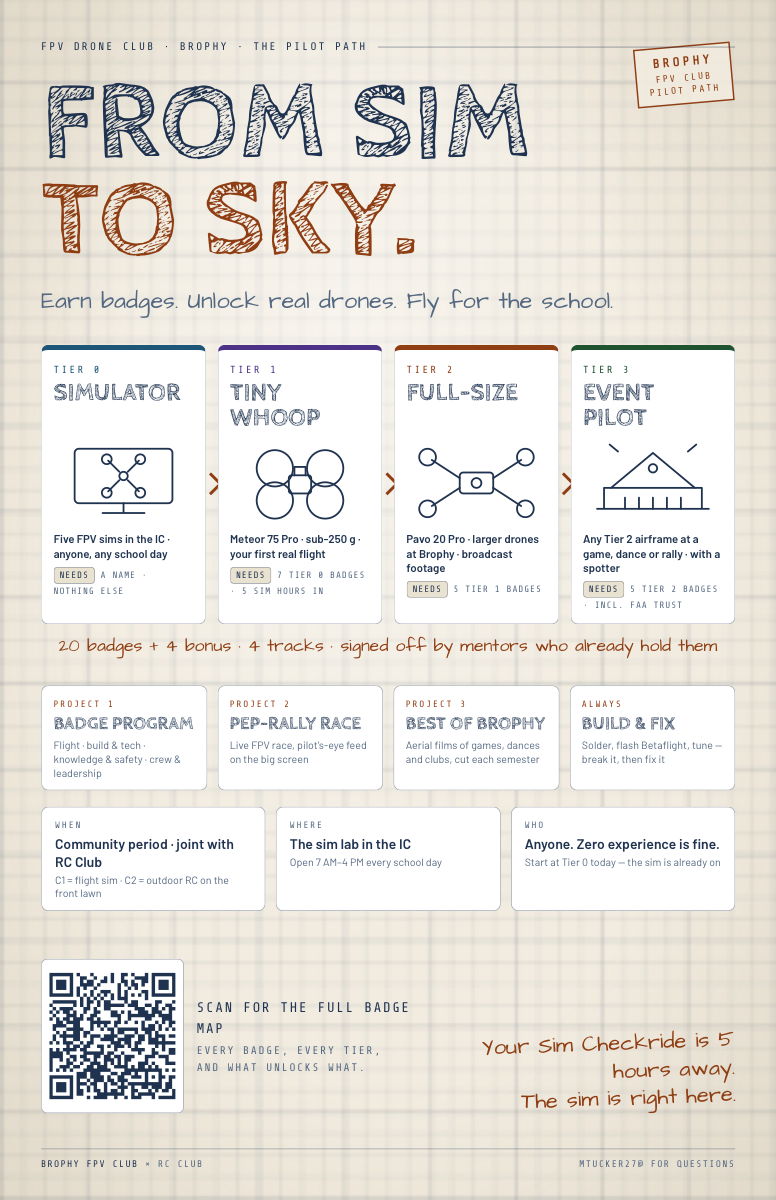

From Sim to Sky.
The club pitch: the four tiers at a glance, the three projects, when and where. QR to the pilot path.

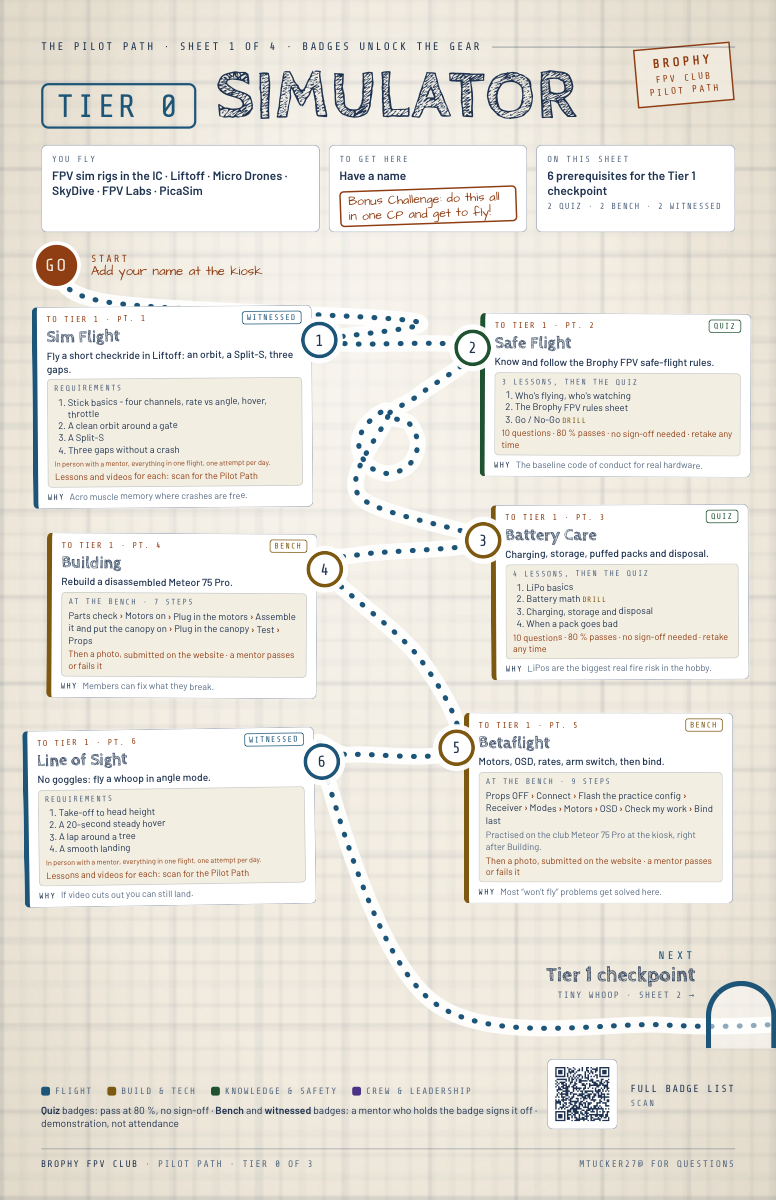

PDFMap · sheet 1 of 4
Tier 0 · Simulator
Start here. The seven prerequisites for the Tier 1 checkpoint, each card with its lessons, steps or standard.
PDFMap · sheet 2 of 4

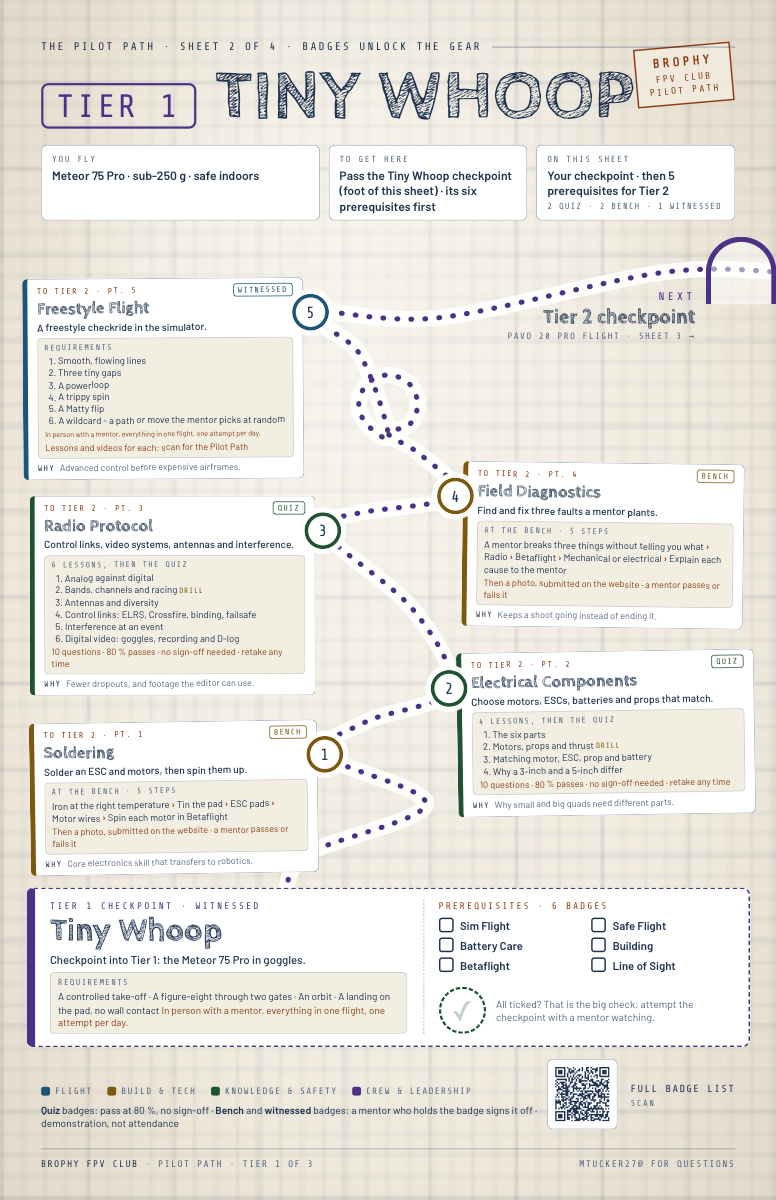

Tier 1 · Tiny Whoop
The Tiny Whoop checkpoint, full width with its prerequisite boxes, then five prerequisites for Tier 2.

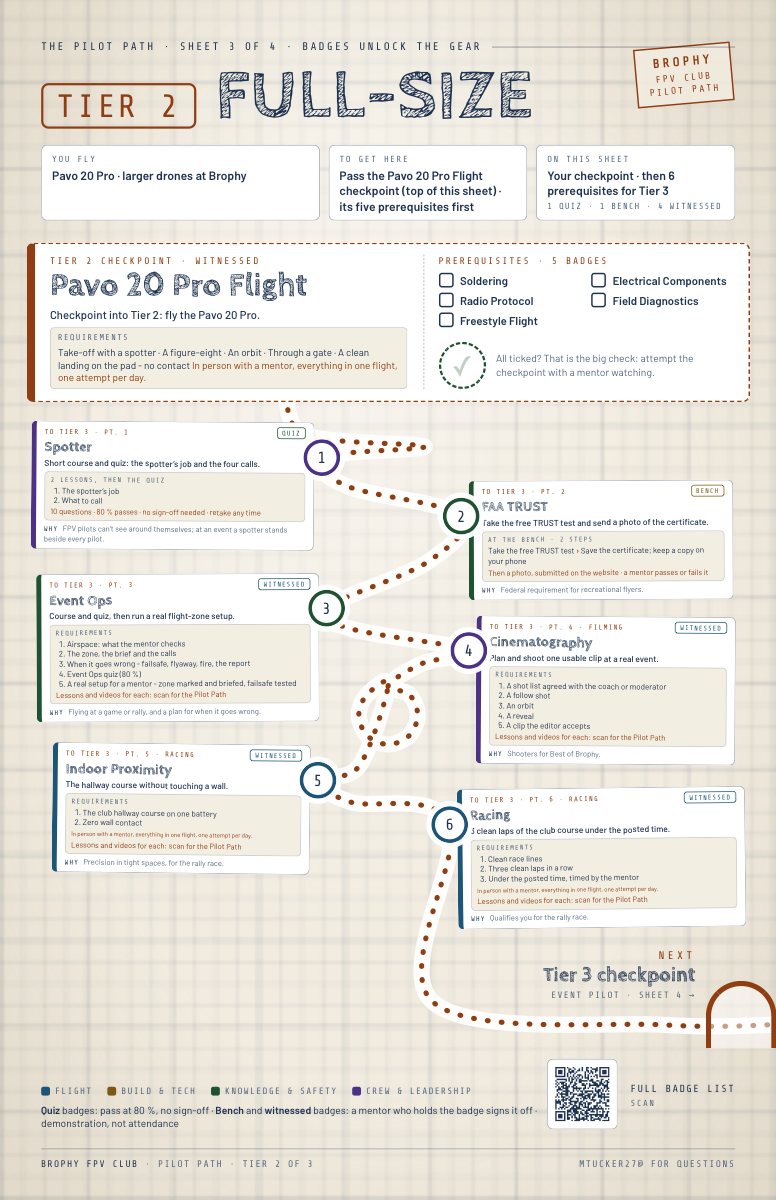

PDFMap · sheet 3 of 4
Tier 2 · Full-size
The Pavo 20 Pro Flight checkpoint, then five prerequisites for Tier 3, filming and racing included.
PDFMap · sheet 4 of 4

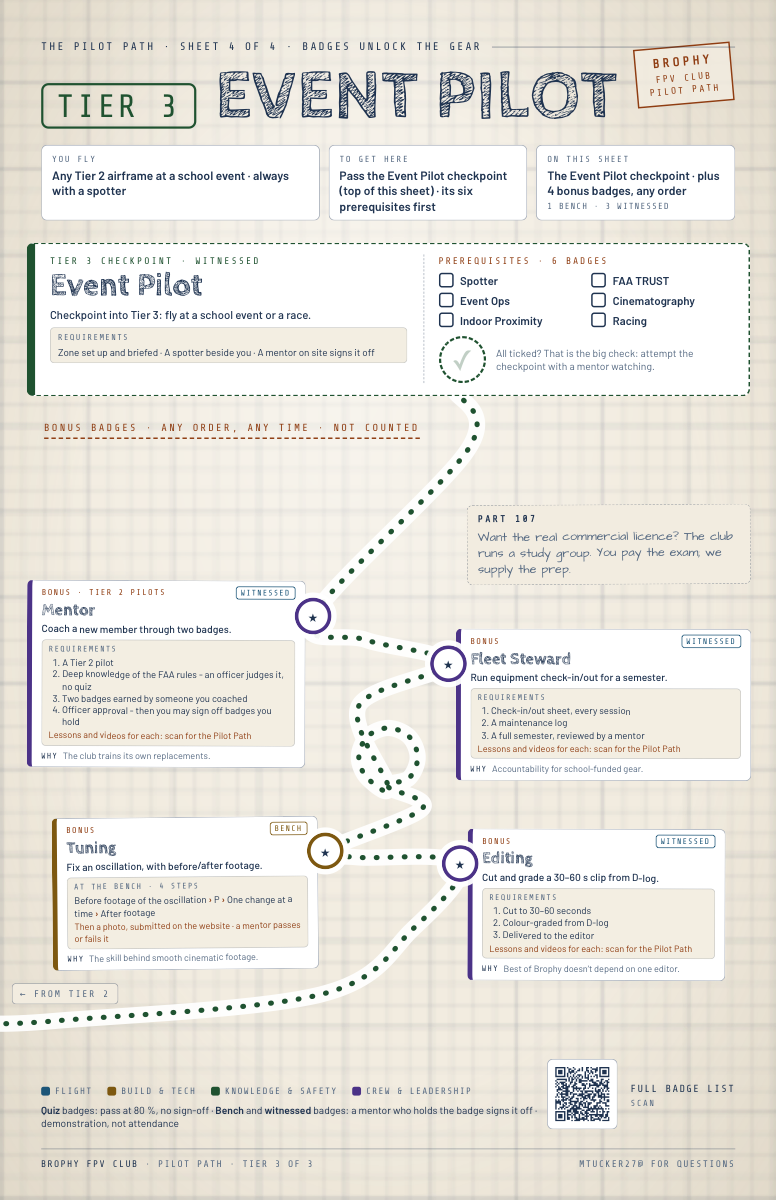

Tier 3 · Event Pilot
The Event Pilot checkpoint, earned by flying at an event or a race, plus the four bonus badges as side quests.
PDF

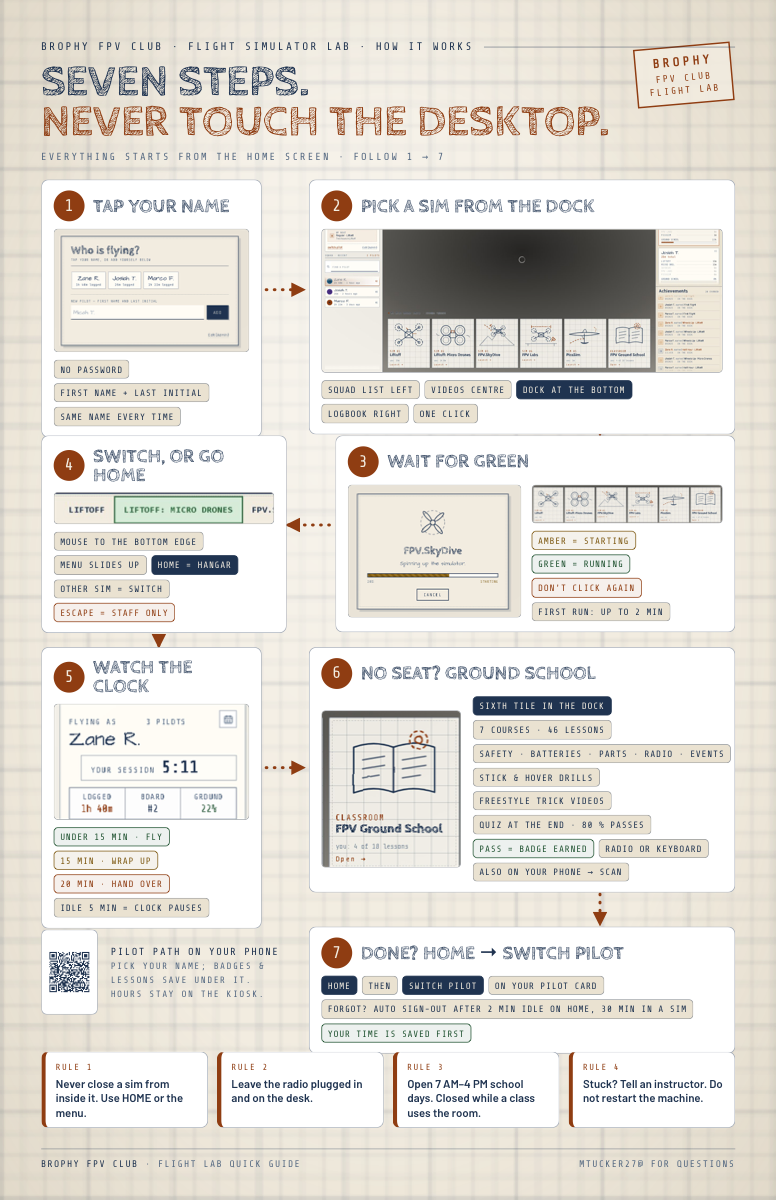

How-to
Seven steps. Never touch the desktop.
Screenshots and arrows: sign in, pick a sim, wait for green, switch, the clock, Ground School, sign out.
PDFDrone docks · one per drone, pinned to the wall
write your name, push pins through the ⊕ marks, hang the drone on them

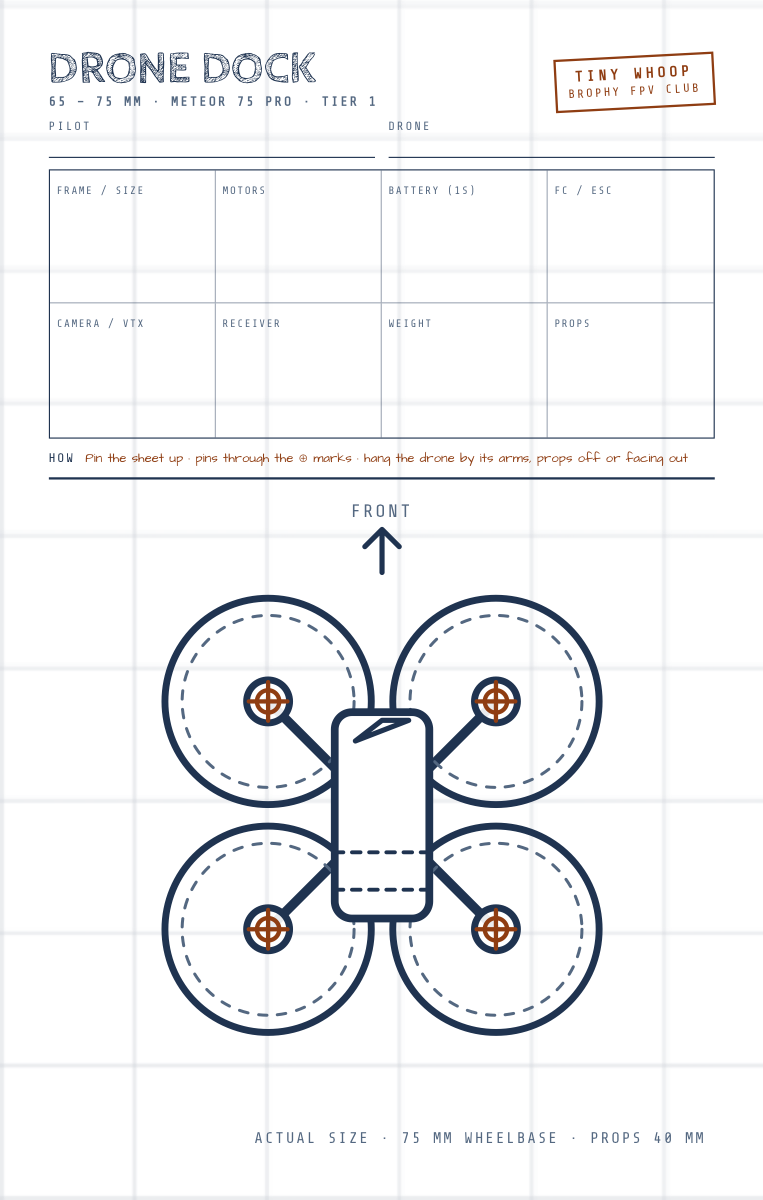

8.5×11 · actual size
Tiny whoop
65–75 mm, Meteor 75 Pro. Bigger spec block, since the drone is small.
PDF

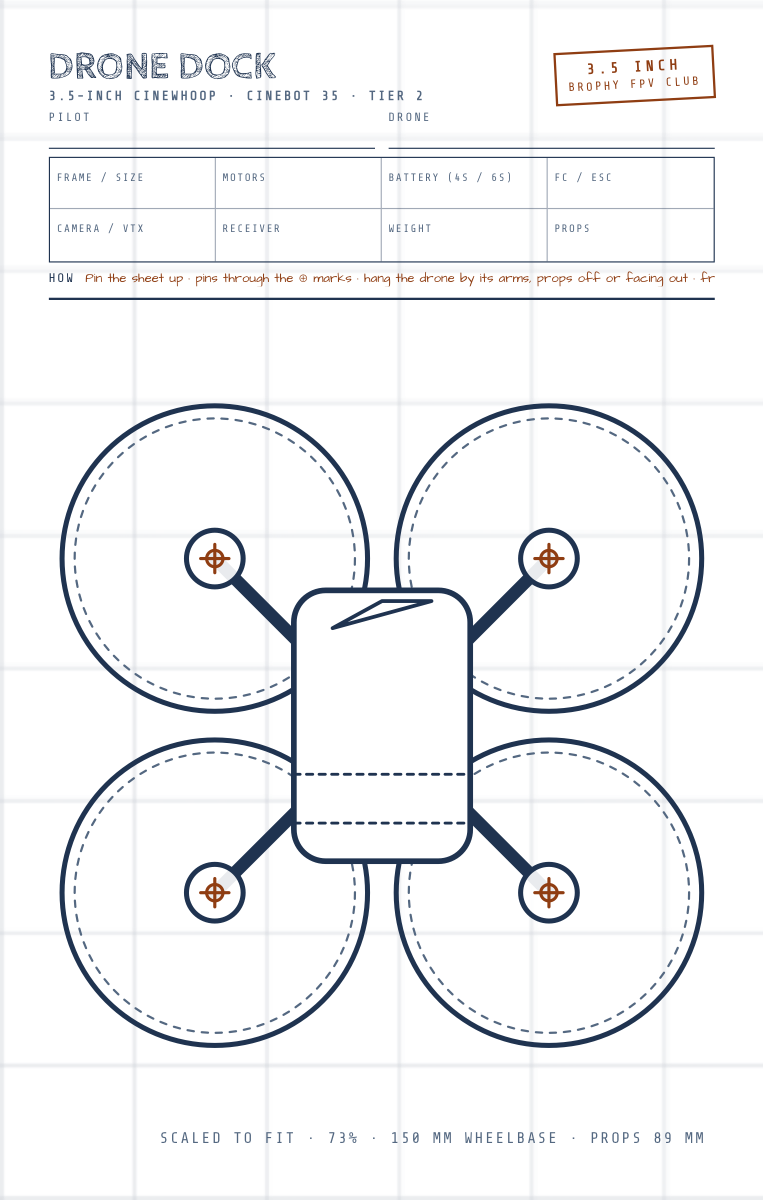

8.5×11 · 92%

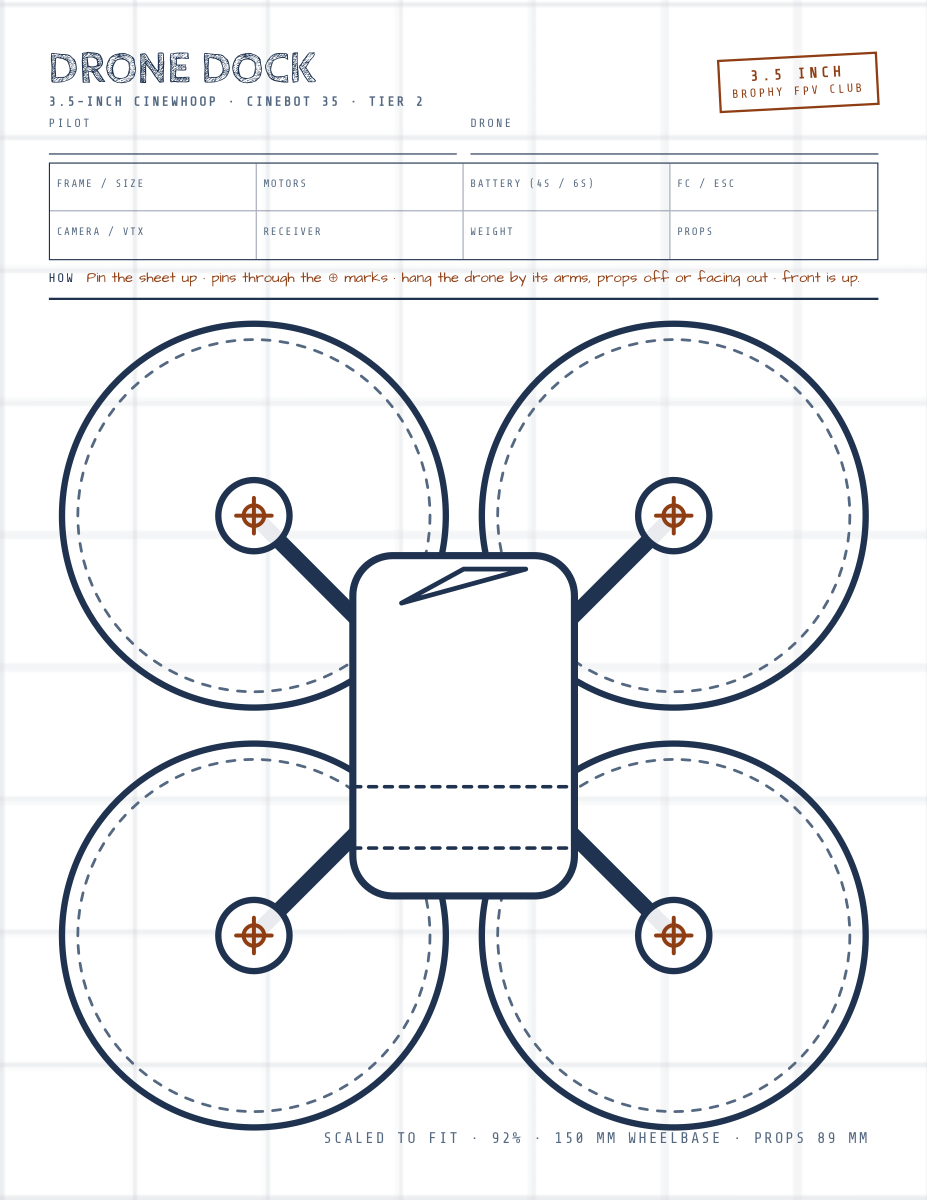

3.5-inch cinewhoop
Cinebot 35. The ducts are a touch wider than the paper, so it is scaled; the sheet says so.
PDF

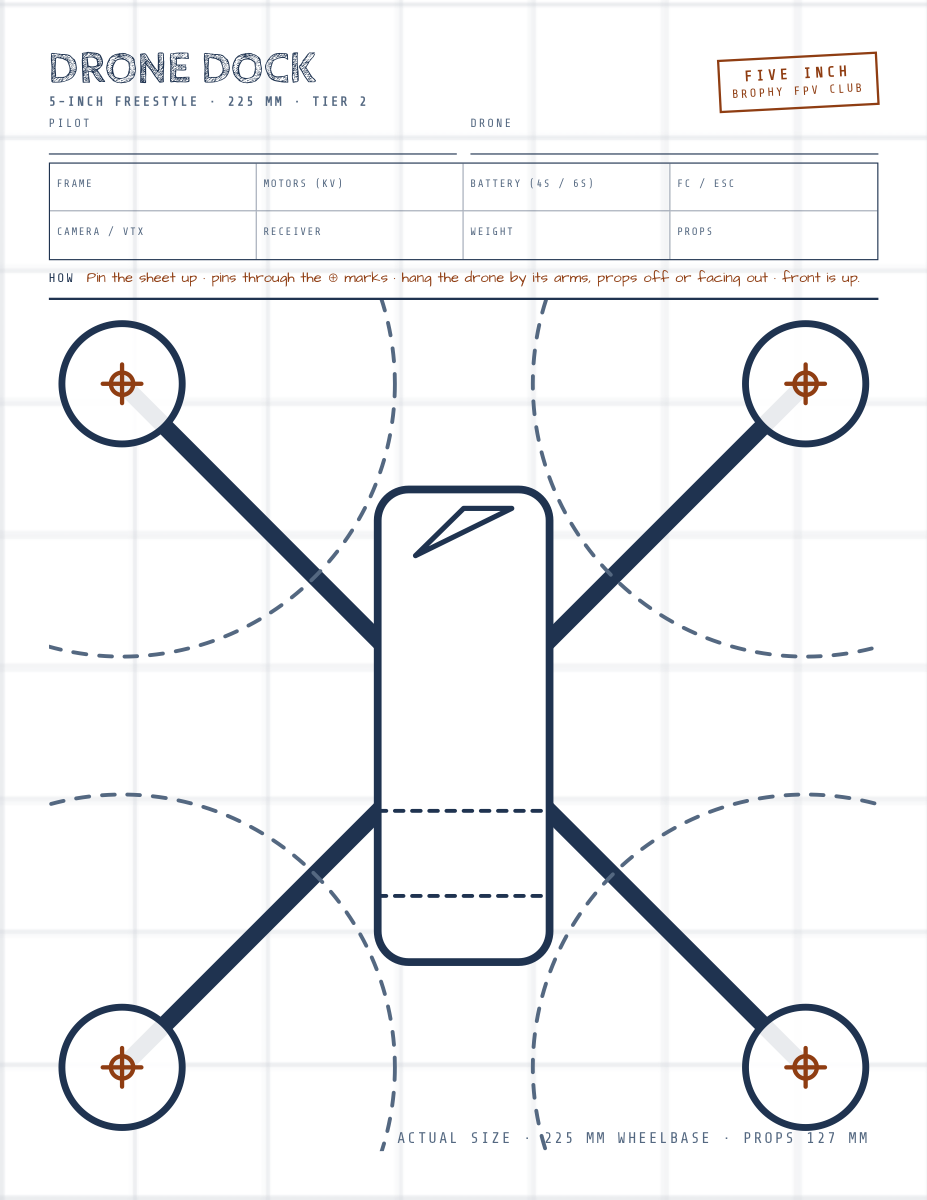

8.5×11 · actual size
5-inch
225 mm freestyle frame. Props shown dashed and run off the page on purpose.
PDF

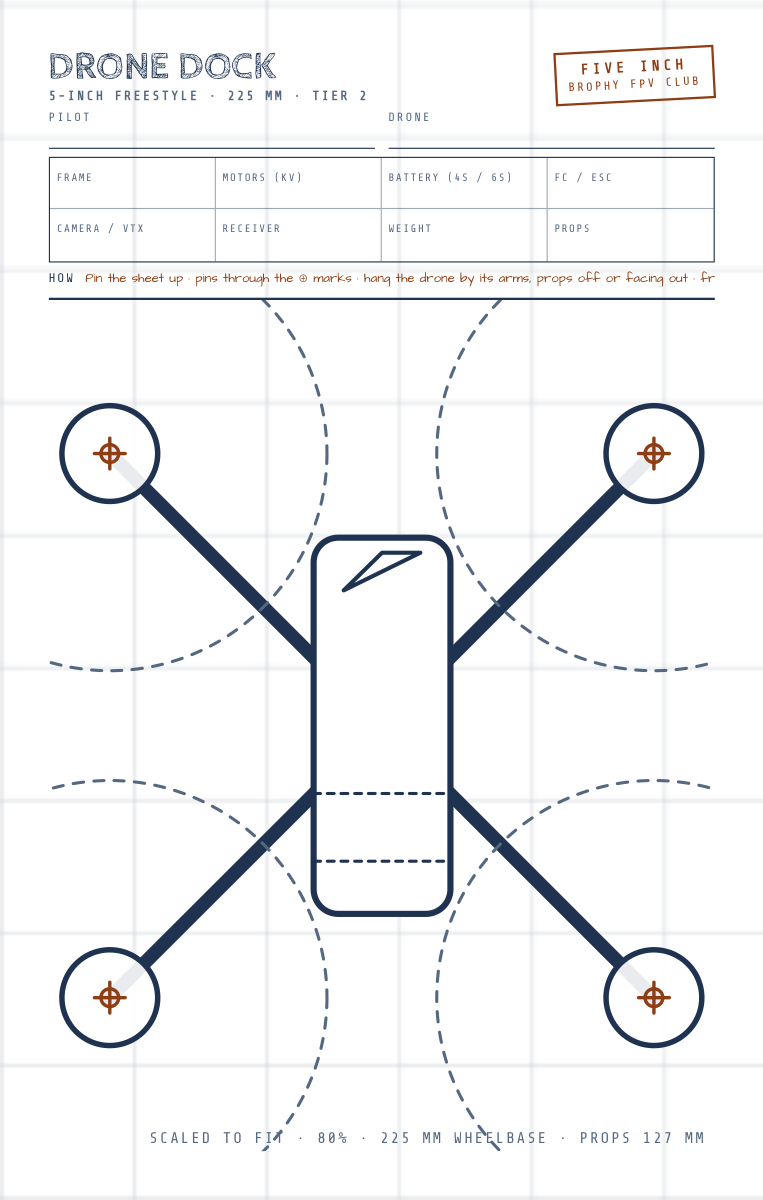

7×11 · scaled to fit
5-inch
Same: the pins still land on the arms, just closer together than the real frame.
PDFPrinting
Paper
11×17 in (tabloid), portrait. Print at 100% / “actual size”, not “fit to page”. The PDFs have no margins; a printer that cannot bleed will add a thin white border, which is fine.
Order on the wall
Ad · Map 1 · 2 · 3 · 4 · How-to · Ad. The four map sheets go edge to edge so the trail connects; the how-to goes nearest the keyboard.
Changing them
Sources are in
posters/src/ in the site repo. The map sheets come from gen_map.py, which reads every badge straight from flightschool/badges.js, the drone docks from gen_dock.py; build.py renders everything to PDF and PNG with headless Chrome.
